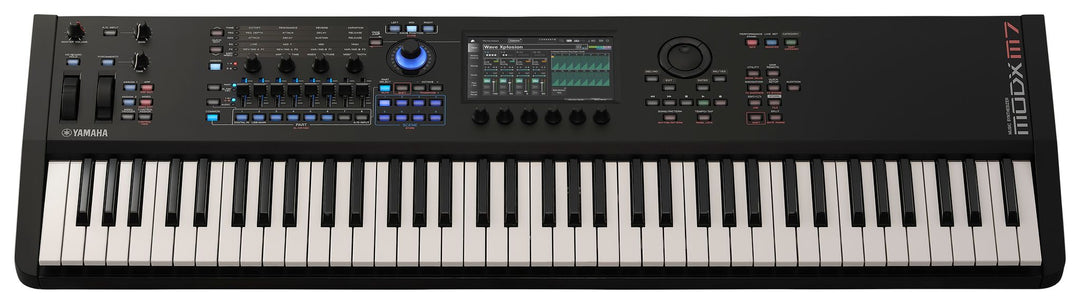

Yamaha MODX M7 Keyboard Synthesizer, 73 Key

Introducing the MODX M, the next-generation mid-class synthesizer from Yamaha. It is designed to evoke remarkable soundscapes with its three Sound Engines. Use AN-X to recreate warm vintage analogue synths, FM-X for dynamic cutting-edge FM synths, and AWM2 for ultra-realistic Sample-based replications of acoustic instruments. The Motion Control Synthesis Engine adds a unique fourth dimension with automated real-time control of your sounds. Thanks to the multitude of Controllers you have direct manual access to the sound parameters.

The MODX M seamlessly bridges stage and studio with deep computer connectivity and integration via USB. With the Expanded Softsynth Plugin for MODX M, the complete Tone Generation of the MODX M is also available virtually as a plugin for seamless integration into your DAW.

Designed to meet the needs of synthesists, keyboardists, and pianists, the MODX M elevates expression everywhere.

Features

MODX M8: 88 key, GHS keyboard, Initial Touch

MODX M7: 76 key, new improved FSB keyboard, Initial Touch

MODX M6: 61 key, new improved FSB keyboard, Initial Touch

Tone Generators: AWM2

128 voices of polyphony
Max. 128 Elements per Part

10.7 GB Preset Waveforms (when converted in 16 bit linear)

1.9 GB Flash Memory for User Waveforms

FM-X

128 voices of polyphony

8 Operators, 88 Algorithms

AN-X

12 voices of polyphony

3 Oscillators, 1 Noise Generator

3,427 Preset Performances

256 Preset Live Sets, 2,048 User Live Sets

Motion Sequencer for real-time control of parameters

16 Part multitimbrality plus Audio Input Parts (A/D In, USB)

18 Filter Types

Integrated Effects

Reverb 13 Types, Variation 91 Types,

Insertion A 91 Types, Insertion B 94 Types,

Master 28 Types

5-Band Master-EQ, 2 Part-EQs (3- and 2-Band)

Sequencer 16 Tracks, 128 Patterns, 128 Songs

Arpeggiator Arpeggios for up to eight Parts in parallel

10,922 Preset Arpeggios

256 User Arpeggios

Controllers Pitch Bend and Modulation Wheel

8 Control Sliders with LED bars,
4 Assignable Knobs, Super Knob

2 Assignable Switches
8 Scene Switches

Portamento Switch and Portamento Time Knob

6 Display Knobs

Display 7” TFT Color Wide VGA LCD Touch Screen

Connectors OUTPUT [L MONO]/[R]

A/D INPUT [L MONO]/[R] (all 6.3 mm TRS jacks)

PHONES Stereo (6.3 mm phone jack)

MIDI IN/OUT

FOOT CONTROLLER 1 / 2

FOOT SWITCH SUSTAIN / ASSIGNABLE

USB TO DEVICE
USB TO HOST

4 channels Input, 10 channels Output at 44.1 kHz

Dimensions (W x D x H) / Weight:

MODX M8: 1,310 mm × 391 mm × 152 mm / 13.6 kg

MODX M7: 1,089 mm × 347 mm × 117 mm / 7.6 kg

MODX M6: 882 mm × 347 mm × 117 mm / 6.6 kg
