Guitar Amps

Independent volume and gain control for all three channels has arrived with the 5150III® 50W EL34 head. Experience total control, along with the same lethal looks and ferocious EL34 tone of the 100-Watt head.

The EL34 power tubes deliver signature harmonic overtones, with more dynamic compression and saturation that evoke a more modern “British” sound, all with the sustain and versatility expected from EVH® 5150III® amps.

Channel one boasts a more sparkling and compressed clean tone, while channels two and three possess a slightly darker and compressed tone with even more saturation than before. Channels one and two each have dual concentric gain/volume controls, with shared EQ (low, mid, high), while channel 3 has an independent EQ. Other features include a rear-panel resonance control that tailors low-frequency response for all channels and a global presence control.

Wrapped in an elegant gold and black EVH motif, the EL34 50-watt head also is equipped with an effects loop, headphone jack, pre-amp out and midi-in.

A 4 x 12" guitar cabinet loaded with original 60s-model speakers. These Celestion G12Ms Greenbacks distinctively punchy yet gloriously airy sound is the key to mindblowing clean, crunch and classic rock tone.

Black Spirit 200 delivers an explosive ride through musical history, a four-channel eruption of thrilling sounds that gives you the most intense playing experience you’ve ever felt.

Blessed with incredible practicality and an exhilarating range of sounds and features, immense power, and weighing in at just 8 lbs., Black Spirit 200 is perfect for anywhere from your bedroom to the world’s biggest arenas.

The sound experience and feel of a high-quality tube amp circuit. The flexibility and versatility of a modelling amp. The ease of use and robustness of a transistor amp. All this is contained within Black Spirit 200. It truly is like no amp before.

Features:

• Amazingly versatile tonal range, paired with intuitive ease of use

• Power adjustable from 0 to 200 watts

• Plugs into virtually any speaker, including PA and hi-fis!

• Bluetooth and line input

• Reliable and ridiculously light

• New Spirit Tone Generator technology

• 4 programmable channels, and support for presets

• Capture recordings without mics with the built in Red Box

• App for iPad and Android

V212HWX

• Speakers: 12" 8 Ohm Celestion Alnico Blue (x2); Total 30W 16 Ohm.
• Dimensions (W x D x H): 705 x 260 x 550 mm / 27.76 x 10.24 x 21.65 inches
• Weight: 20.3kg / 44.8 lbs.
• Included items: Dust cover

Designed to complement the new AC15CH & AC30CH heads, the V212C delivers the classic VOX sound through two trusty Celestion G12M Greenback speakers. The V212C is also a great addition to the AC30 Custom combo when you need more volume and stage presence.

Those instantly recognizable, warm British sounds youve come to expect from VOX are alive and well in the compact, 10-Watt Pathfinder 10 combo - plus a high gain capability thats thoroughly modern!

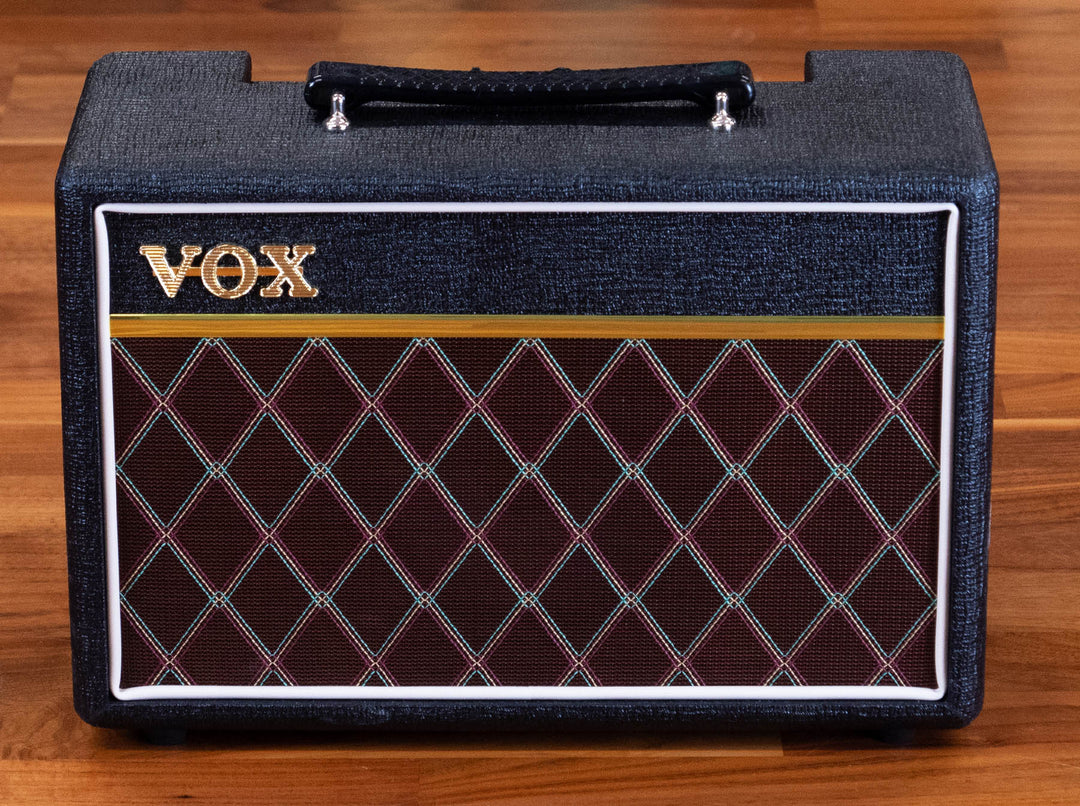

This 10-Watt, 1 x 6.5" combos eye-catching looks are also classic VOX and include basket-weave, leather-look vinyl, our distinctive diamond grille cloth and, of course, chicken head knobs! Small but all-important details such as the white piping have also been faithfully reproduced, perfectly recapturing the legendary look of VOX.

Little Yet Loud!

The Pathfinder 10s powerful yet always tone-filled 10-Watt output, makes this amp perfect for home practice, backstage warm-up and recording. The Clean/Overdrive switch allows you to change instantly between clean and dirty sounds. With a mere press of this switch you can go from a crystal clear clean sound to our uniquely warm distortion; or from a slightly crunchy bluesy tone to a high-gain, modern-rock roar.

Headphone/Lineout jack

Want to practice late at night without disturbing your neighbours? No problem! Just plug your headphones into the Headphone/Line Out jack and away you go - your sleeping neighbours wont hear a thing because using this jack automatically mutes the amps speaker! This jack also doubles as a specially filtered Line Out which is perfect for recording your amp without having to worry about setting up any pesky microphones. The Pathfinder 10 also features controls for Gain, Treble, Bass and Volume plus a Clean/Overdrive switch.

Top Panel

• Input Jacks. This, believe it or not, is where you plug your guitar into the amp!
• Gain Control. This adjusts the overall preamp gain of the amplifier. This control can produce a wide variety of killer tones - from clean to crunchy to crazy and all points in-between! What you get all depends on how you set this control and also how you have the Clean/Overdrive Switch (3) set. In both Switch modes - Clean & Overdrive - turning the Gain control down (i.e. counter clockwise) will clean up your sound while cranking it up (i.e. turning it clockwise) will dirty things up. The possibilities are endless.
• Clean/Overdrive Switch. As its name suggests, this switch puts the preamp of the Pathfinder 10 in one of two distinctly different modes -Clean (switch "out") or Overdrive (switch "in"). And, as youd expect, the Overdrive mode has bags more gain than the Clean mode. So, if you want more gain just press this button in and let rip!
• Treble Control. This adjusts the treble (high) frequencies in your tone. It can take your sound from soft and round, to bright and cutting, and any point in-between.
• Bass Control. This adjusts the bass (low) frequencies in your tone. It can take your sound from warm and light, to dark and heavy and any point in-between.
• Volume Control. This determines the overall volume of the amplifier. Setting this control high while keeping the Gain low works well for clean sounds (HINT: make sure the Clean/Overdrive Switch is "out" if you wanna go clean!), while setting the Master Volume lower, engaging the Overdrive mode and turning up the Gain will give you a fat, distorted sound at a lower, "bedroom friendly" volume.
• Headphone/Line Out Jack. This dual output carries a specially filtered signal for use with either headphones or for direct connection to a soundboard or recording console. The LINE OUT gives you a good sounding signal for recording or live work without having to mic up the amp. Inserting a jack-plug into this jack will mute the internal speaker.
• Power ON/OFF Switch & LED. On/Off switch for mains (AC) power to amplifier. Plus power indicator LED.

Guitarists have long been familiar with these best-selling, portable, solid-state combo amps, and now bass players can experience a taste of the legendary VOX brand with the Pathfinder Bass 10. From the diamond grille cloth and basket-weave vinyl leather to the vintage chicken-head knobs, the Pathfinder Bass 10 loudly proclaims its VOX pedigree. This dual- speaker, deep-thumping, portable amp is ideal for the on-the-go bass player. In addition to Treble and Bass tone-shaping controls, the Bright switch offers an edgy boost to the upper harmonics. Turning up the Drive control provides a warm, bass distortion that adds character and vitality to the tone. The Pathfinder Bass 10 pumps out 10 watts into a pair of 5" VOX bulldog speakers. A headphone/line output jack is also provided for silent practice and recording.

The all-new BC112-150 speaker cabinet is a perfect match for the MVX150H

The BC112-150 speaker cabinet takes full complete advantage of the MVX150s power. Like the combo model, it is equipped with a UK-made Celestion Redback speaker. With 150W of input handling capacity, its the perfect way to fully draw out the potential of the MVX150, both in sound and design.

The UK-made Celestion Redback 12-inch speaker used in the BC112-150 boasts a 150W input handling capacity, delivering a high level of expressive power for anything from vintage to modern sounds. Carrying on the revolutionary structural design of the BC112, it achieves truly uncompromising sound quality and performance. The Black Cab series was designed to be simple, reliable and highly versatile, making this speaker cabinet a great choice for use with the MVX150H, with the MVX150C1 to assemble a dry/wet system, or with another high-output amp head.

Specs

• Speaker: 1 x 12"; Celestion G12H-150 Redback 4 ohm Input: INPUT jack
• Max Input: 150W
• Dimensions(WxDxH): 520x260x445mm
• 20.47"; x 10.24"; x 17.52"; Weight: 15.4 kg/33.95 lbs.
• Included Items: Speaker cable

VOXs AC4C1 delivers the coveted sound of the AC30 Top Boost circuit in an all-tube, 4 watt Class A amplifier. An ideal choice for the home or the studio, the AC4 Custom serves up an array of authentic VOX tone through a Celestion 10" speaker and can even be paired with external speaker cabinet for more tonal diversity. This iconic low-wattage amp was first introduced by VOX in 1961 and is still the choice of many modern guitarists who are drawn to its mesmerizing tone and classic aesthetic. Whether youre already a member of the VOX family, or youre looking for your way in, no collection is complete without an AC4.

Specifications

• Output Power: 4 Watts RMS into 16 Ohms
• Tube Complement: Preamp: 12AX7 (x2) Power: EL84 (power)
• Speaker: 10" Celestion VX10 custom (x1); 16 ohm
• Controls: Gain, Treble, Bass, Volume
• Terminals: Input (¼") External Speaker output
• Dimensions (W x D x H): 349 x 211 x 381 mm / 13.74 x 8.31 x 15 inches
• Weight: 9.0 Kg / 19.84 lbs

The new AC4C1-12 is a 4 Watt combo amplifier with a 12" speaker that carries on the VOX tradition.

Among the various VOX tube amps, the AC4 has remained one of the most popular over the years, as they provide a simple and hassle free way to enjoy the rich sound of a tube driven amp. While previous models were equipped with a 10-inch speaker, this new model features a 12-inch Celestion speaker that delivers even more robust sound levels. With diamond grille cloth and basket-weave vinyl exterior, it also carries on the classic looks of the VOX tradition. This is a Class A tube amp that you can enjoy whether youre practicing at home, performing live, or recording.

Highlights:

• All-tube mini combo amp
• Legendary Top Boost tone inherited from the VOX AC30
• Gain, Bass, Treble, and Master Volume controls
• 4 Watt Class A amplifier design
• 12AX7 preamp tubes (x2); EL84 power tube (x1)
• 12" Celestion VX12 speaker; retro Bakelite handle

The AC30s Top Boost sound has fascinated guitarists around the world for over fifty years. Capable of massive crunch or the clean, classic “chime," this Top Boost tone is the essence of VOXs identity. The AC4C1-12 now delivers this unbeatable sound in a portable, compact body. Gain control, Bass and Treble tone controls, and a Master Volume allow any player to easily recreate this historic sound.

Specifications

• Output Power: 4 Watts RMS into 16Ω
• Tube Complement: Preamp:12AX7 (x 2) Power: EL84 (x1)
• Speaker: 12" Celestion VX12 custom (x1); 16Ω
• Controls: Gain, Treble, Bass, Volume
• Input/Output: Guitar Input, EXTERNAL SPEAKER Output
• Dimensions (W x D x H): 406 x 211 x 451 mm / 15.98" x 8.31" x 17.76"
• Weight: 10.6 kg / 23.37 lbs

By 1964 the British Invasion was well underway in America. Armed with catchy tunes and VOX amplifiers, the bands of this era changed popular music forever. No amplifier was more important to this new “sound of the longhairs" than the VOX AC30 Top Boost. Years later, these now rare amplifiers would serve as the backbone for countless seminal rock records and are still celebrated by tone connoisseurs as one of the finest guitar amplifiers ever produced. The 60th Anniversary AC30 is VOXs tribute this truly legendary amplifier.

Initially developed in 1959 for players who needed more power, the AC30 quickly became the go-to amplifier for professional players in the UK. When met with the demand for more control of the tone of these amps, VOX developed the optional Top Boost circuit, a clever modification that resulted in the signature sound that has become synonymous with the AC30. The 60th Anniversary AC30 is built in the tradition of 1964 AC30/6 and features a factory integrated Top Boost circuit on the Brilliant Channel. This six-input amplifier also includes the classic Normal & Vib-Trem channels to provide a full palette of vintage VOX tone.

The 60th Anniversary AC15 & AC30 represent the absolute pinnacle of VOX Amplification. Because of the intensely sophisticated engineering and design skills demanded by these amplifiers, these models will be available in extremely limited quantities in 2017 only. For 60 years now, the most recognizable names in Rock n Roll have been drawn to VOX amplifiers for their incomparable tone. The distinguished, pure tube sound and signature chime of these amplifiers have served as the foundation for some of the most memorable moments in musical history. With the introduction of these 60th Anniversary models, VOX Amplification has assured that this tradition of tone will be continued for decades to come.

Features:

• Operating conditions: 0°C-+35°C (no condensation)
• Dimensions (W x D x H): 703 x 263 x 575 mm / 27.68 x 10.35 x22.64 inches
• Weight: 33.5kg / 73.85lbs.
• Output power: 30 Watts RMS into 8/16 Ohms
• Tube complement: 5 x ECC83/12AX7, 1 x ECC82/12AU7, 4 x EL84, 1 x GZ34
• Speakers: 2 x 12" 8 Ohm Celestion Alnico Silver
• Input: VIB/TREM INPUT Jack (HIGH and LOW, NORMAL INPUT Jack (HIGH and LOW), BRILLIANT INPUT Jack (HIGH and LOW), FOOT SWITCH Jack
• Outputs: 3 x POWER OUTPUT Jacks
• Included items: Power cord, Owners manual, “Egg" foot switch, Dust cover

There may never have been an amp boasting such a lofty and pure sound in the entire history of VOX. The VOX Hand-Wired Series relies on the painstaking technique of turret board hand-wiring - a method requiring a high level of skill and craftsmanship - is used, resulting in wiring thats beautiful in its artistry, ensuring an efficient signal path with minimal loss and no restriction in amplitude. In the Hand-Wired Series, tubes, transformers, speakers, chassis, and custom parts all join together in an ideal state to deliver the richest and most powerful sonic experience - the ultimate amp. Not bound by tradition, the VOX Hand-Wired Series also provides a variety of new functions that keep pace with the needs of todays artists. Offering a rich variety of tonal shadings and a broad model lineup, the enormous potential of the VOX Hand-Wired Series will reveal itself in any musical scenario.

Specs

• Output Power: 30 Watts RMS into 8/16 Ohms
• Tube Complement: Preamp: ECC83/12AX7 (x3), Power amp: EL84 (x4), Rectifier: GZ34
• Speakers: 12" Celestion Alnico Blue (x2); 8 Ohm
• Inputs: NORMAL Channel Jacks: HIGH (x1); LOW (x1) TOP BOOST Channel Jacks: HIGH (x1); LOW (x1) FOOT SWITCH Jack
• Outputs: POWER OUTPUT Jacks (x2 for external/extension speakers)
• Dimensions (W x D x H): 705 x 260 x 550 mm / 27.76 x 10.24 x 21.65 inches
• Weight: 30.8 kg / 67.9 lbs.
• Included items: Power cable, VFS1 footswitch, Dust cover

There may never have been an amp boasting such a lofty and pure sound in the entire history of VOX. The VOX Hand-Wired Series relies on the painstaking technique of turret board hand-wiring - a method requiring a high level of skill and craftsmanship - is used, resulting in wiring thats beautiful in its artistry, ensuring an efficient signal path with minimal loss and no restriction in amplitude. In the Hand-Wired Series, tubes, transformers, speakers, chassis, and custom parts all join together in an ideal state to deliver the richest and most powerful sonic experience - the ultimate amp. Not bound by tradition, the VOX Hand-Wired Series also provides a variety of new functions that keep pace with the needs of todays artists. Offering a rich variety of tonal shadings and a broad model lineup, the enormous potential of the VOX Hand-Wired Series will reveal itself in any musical scenario.

Specs

• Output Power: 30 Watts RMS into 8/16 Ohms
• Tube Complement: Preamp: ECC83/12AX7 (x3), Power amp: EL84 (x4), Rectifier: GZ34
• Speakers: 12" Celestion G12M Green Back (x2); 8 Ohm
• Inputs: NORMAL Channel Jacks: HIGH (x1); LOW (x1) TOP BOOST Channel Jacks: HIGH (x1); LOW (x1) FOOT SWITCH Jack
• Outputs: POWER OUTPUT Jacks (x2 for external/extension speakers)
• Dimensions (W x D x H): 705 x 260 x 550 mm / 27.76 x 10.24 x 21.65 inches
• Weight: 30.8 kg / 67.9 lbs.
• Included items: Power cable, VFS1 footswitch, Dust cover

The VOX AC30 combo amp has been an icon for decades, known as the sound that powered the 1960s "British Invasion." Based on the classic AC30 design, the all-new Custom Series AC30C2 and AC30C2X offer numerous up-to-date enhancements, delivering the most versatile AC30 design in VOX history.

An Evolution in Tone

VOX Custom Series amps offer two channels: Normal and Top-Boost. Each channel is equipped with its own Volume control, and the Top Boost channel offers highly interactive Treble and Bass tone controls. This powerful channel pairing provides an abundance of tone-crafting control, letting you dial in a classic sound that is all your own.

Both channels rely on the Tone Cut and Volume controls in the Master section. The Tone Cut control operates in the power stage rather than the preamp stage, allowing an additional degree of tone-shaping. The Master Volume control works in conjunction with the individual volumes of each channel to create just the right degree of gain-staging. By balancing the individual and Master volumes, the Custom Series can deliver everything from a clean VOX "chimey" sound to a powerful overdriven tone.

Sound in Motion

You can sweeten the sound of your Custom Series amplifier using the VOX Classic Tremolo effect. Both the speed and the depth are adjustable, allowing you to generate just the sound you want. A warm Spring Reverb is also included on all Custom Series amps, adding spaciousness to the sound. The AC30C2 and AC30C2X also include an additional tone control in the Reverb section. All Custom Series amps can use the VOX VFS2 footswitch, allowing you to turn the Reverb and Tremolo effects on and off as you continue to play. The AC30C2 and AC30C2X also provide an effects loop for incorporating your favourite effects into your sound. True "Bypass" switching takes the entire effect loop out of the circuit.

Power Sharing

The AC30C2 and the AC30C2X amps make use of 3 x 12AX7 preamp tubes and use 4 x EL84 tubes to deliver 30 watts of power. The AC30C2 uses two 12" Celestion G12M Greenback speakers. The AC30C2X uses two 12" Celestion Alnico Blues. All models in the Custom Series offer a switchable 8/16 ohm output jack for powering an external speaker cabinet when you need to speak with a little more authority; using this jack will mute the internal speakers. Additionally, a 2nd extension speaker jack allows you to run an extra 16 ohm cabinet along with the internal speakers for a fuller sound.

Specifications

• Dimensions (W x D x H): 702 x 265 x 556 mm / 27.64 x 10.43 x 21.89 inches
• Weight: 33.4 kg / 73.59 lbs.
• Output Power: 30 Watts RMS into 16 Ohms
• Speaker: 2 x 12" 8 ohm Celestion Alnico Blue
• Inputs: Normal input jack (high and low), Top Boost input jack (high and low), FX RETURN jack, Footswitch jack
• Outputs: External loudspeaker jack, Extension loudspeaker jack, FX SEND jack
• Options: VFS2A Footswitch

The VOX AC30 combo amp has been an icon for decades, known as the sound that powered the 1960s "British Invasion." Based on the classic AC30 design, the all-new Custom Series AC30C2 and AC30C2X offer numerous up-to-date enhancements, delivering the most versatile AC30 design in VOX history.

An Evolution in Tone

VOX Custom Series amps offer two channels: Normal and Top-Boost. Each channel is equipped with its own Volume control, and the Top Boost channel offers highly interactive Treble and Bass tone controls. This powerful channel pairing provides an abundance of tone-crafting control, letting you dial in a classic sound that is all your own.

Both channels rely on the Tone Cut and Volume controls in the Master section. The Tone Cut control operates in the power stage rather than the preamp stage, allowing an additional degree of tone-shaping. The Master Volume control works in conjunction with the individual volumes of each channel to create just the right degree of gain-staging. By balancing the individual and Master volumes, the Custom Series can deliver everything from a clean VOX "chimey" sound to a powerful overdriven tone.

Sound in Motion

You can sweeten the sound of your Custom Series amplifier using the VOX Classic Tremolo effect. Both the speed and the depth are adjustable, allowing you to generate just the sound you want. A warm Spring Reverb is also included on all Custom Series amps, adding spaciousness to the sound. The AC30C2 and AC30C2X also include an additional tone control in the Reverb section. All Custom Series amps can use the VOX VFS2 footswitch, allowing you to turn the Reverb and Tremolo effects on and off as you continue to play. The AC30C2 and AC30C2X also provide an effects loop for incorporating your favourite effects into your sound. True "Bypass" switching takes the entire effect loop out of the circuit.

Power Sharing

The AC30C2 and the AC30C2X amps make use of 3 x 12AX7 preamp tubes and use 4 x EL84 tubes to deliver 30 watts of power. The AC30C2 uses two 12" Celestion G12M Greenback speakers. The AC30C2X uses two 12" Celestion Alnico Blues. All models in the Custom Series offer a switchable 8/16 ohm output jack for powering an external speaker cabinet when you need to speak with a little more authority; using this jack will mute the internal speakers. Additionally, a 2nd extension speaker jack allows you to run an extra 16 ohm cabinet along with the internal speakers for a fuller sound.

VOX AC30C2 Custom Specifications

• Dimensions (W x D x H): 702 x 265 x 556 mm / 27.64 x 10.43 x 21.89 inches
• Weight: 32.2 kg / 70.99 lbs.
• Output Power: 30 Watts RMS into 16 Ohms
• Speaker: 2 x 12" 8 ohm Celestion G12M Greenback
• Inputs: Normal input jack (high and low), Top Boost input jack (high and low), FX RETURN jack, Footswitch jack
• Outputs: External loudspeaker jack, Extension loudspeaker jack, FX SEND jack
• Options: VFS2A Footswitch

The VOX AC30 combo amp has been an icon for decades, known as the sound that powered the 1960s "British Invasion." Based on the classic AC30 design, the all-new Custom Series AC30C2 and AC30C2X offer numerous up-to-date enhancements, delivering the most versatile AC30 design in VOX history.

An Evolution in Tone

VOX Custom Series amps offer two channels: Normal and Top-Boost. Each channel is equipped with its own Volume control, and the Top Boost channel offers highly interactive Treble and Bass tone controls. This powerful channel pairing provides an abundance of tone-crafting control, letting you dial in a classic sound that is all your own.

Both channels rely on the Tone Cut and Volume controls in the Master section. The Tone Cut control operates in the power stage rather than the preamp stage, allowing an additional degree of tone-shaping. The Master Volume control works in conjunction with the individual volumes of each channel to create just the right degree of gain-staging. By balancing the individual and Master volumes, the Custom Series can deliver everything from a clean VOX "chimey" sound to a powerful overdriven tone.

Sound in Motion

You can sweeten the sound of your Custom Series amplifier using the VOX Classic Tremolo effect. Both the speed and the depth are adjustable, allowing you to generate just the sound you want. A warm Spring Reverb is also included on all Custom Series amps, adding spaciousness to the sound. The AC30C2 and AC30C2X also include an additional tone control in the Reverb section. All Custom Series amps can use the VOX VFS2 footswitch, allowing you to turn the Reverb and Tremolo effects on and off as you continue to play. The AC30C2 and AC30C2X also provide an effects loop for incorporating your favourite effects into your sound. True "Bypass" switching takes the entire effect loop out of the circuit.

Power Sharing

The AC30C2 and the AC30C2X amps make use of 3 x 12AX7 preamp tubes and use 4 x EL84 tubes to deliver 30 watts of power. The AC30C2 uses two 12" Celestion G12M Greenback speakers. The AC30C2X uses two 12" Celestion Alnico Blues. All models in the Custom Series offer a switchable 8/16 ohm output jack for powering an external speaker cabinet when you need to speak with a little more authority; using this jack will mute the internal speakers. Additionally, a 2nd extension speaker jack allows you to run an extra 16 ohm cabinet along with the internal speakers for a fuller sound.

VOX AC30C2 Custom Specifications

• Dimensions (W x D x H): 702 x 265 x 556 mm / 27.64 x 10.43 x 21.89 inches
• Weight: 32.2 kg / 70.99 lbs.
• Output Power: 30 Watts RMS into 16 Ohms
• Speaker: 2 x 12" 8 ohm Celestion G12M Greenback
• Inputs: Normal input jack (high and low), Top Boost input jack (high and low), FX RETURN jack, Footswitch jack
• Outputs: External loudspeaker jack, Extension loudspeaker jack, FX SEND jack
• Options: VFS2A Footswitch

The 60th Anniversary AC15 is a faithful recreation of a true landmark amplifier in VOXs rich history, the EF86 equipped AC15 from 1957. The ever-evolving AC15 underwent three revisions in 1957, with the last being represented in our 60th Anniversary AC15. Much of what players would come to know and love about VOX was established in 1957, including the distinct split-baffle design & iconic diamond cloth and, most significantly, the renowned chiming tone that would soon define an entire genre of music.

Just like the amps of 1957, the 60th Anniversary AC15 features two distinct channels. Channel I, or Normal, offers the same rich, articulate tube tone that established the AC15 as a must-have amplifier for guitarists. Channel II, or Vib-Trem, provides players with some of the most elusive guitar tones in recorded history, the hypnotic and unmistakable vibrato of a vintage VOX.

The 60th Anniversary AC15 & AC30 represent the absolute pinnacle of VOX Amplification. Because of the intensely sophisticated engineering and design skills demanded by these amplifiers, these models will be available in extremely limited quantities in 2017 only. For 60 years now, the most recognizable names in Rock n Roll have been drawn to VOX amplifiers for their incomparable tone. The distinguished, pure tube sound and signature chime of these amplifiers have served as the foundation for some of the most memorable moments in musical history. With the introduction of these 60th Anniversary models, VOX Amplification has assured that this tradition of tone will be continued for decades to come.

Features:

• Operating conditions: 0°C-+35°C (no condensation)
• Dimensions (W x D x H): 553 x 278 x 575 mm / 20.98 x 10.94 x 22.64 inches
• Weight: 24.0kg / 52.91lbs.
• Output power: 15 Watts RMS into 8/16 Ohms
• Tube complement: 1 x EF86, 3 x ECC83/12AX7, 1 x ECC82/12AU7, 2 x EL84, 1 x EZ81
• Speakers: 1 x 12" 16 Ohm Celestion Alnico Silver
• Input: VIB/TREM INPUT Jack (HIGH and LOW, NORMAL INPUT Jack (HIGH and LOW), FOOT SWITCH Jack
• Outputs: 3 x POWER OUTPUT Jacks
• Included items: Power cord, Owners manual, “Egg" foot switch, Dust cover

There may never have been an amp boasting such a lofty and pure sound in the entire history of VOX. The VOX Hand-Wired Series relies on the painstaking technique of turret board hand-wiring - a method requiring a high level of skill and craftsmanship - is used, resulting in wiring thats beautiful in its artistry, ensuring an efficient signal path with minimal loss and no restriction in amplitude. In the Hand-Wired Series, tubes, transformers, speakers, chassis, and custom parts all join together in an ideal state to deliver the richest and most powerful sonic experience - the ultimate amp. Not bound by tradition, the VOX Hand-Wired Series also provides a variety of new functions that keep pace with the needs of todays artists. Offering a rich variety of tonal shadings and a broad model lineup, the enormous potential of the VOX Hand-Wired Series will reveal itself in any musical scenario.

Specs

• Output Power: 15 Watts RMS into 8/16 Ohms
• Tube Complement: Preamp: ECC83/12AX7 (x3), Power amp: EL84 (x2), Rectifier: EZ81
• Speakers: 12" Celestion Alnico Blue (x1); 16 Ohm
• Inputs: NORMAL Channel Jacks: HIGH (x1); LOW (x1) TOP BOOST Channel Jacks: HIGH (x1); LOW (x1) FOOT SWITCH Jack
• Outputs: External Speaker Jack, Extension Speaker Jack
• Dimensions (W x D x H): 610 x 260 x 550 mm / 24.02 x 10.24 x 21.65 inches
• Weight: 22.8 kg / 50.3 lbs.
• Included items: Power cable, VFS1 footswitch, Dust cover

There may never have been an amp boasting such a lofty and pure sound in the entire history of VOX. The VOX Hand-Wired Series relies on the painstaking technique of turret board hand-wiring - a method requiring a high level of skill and craftsmanship - is used, resulting in wiring thats beautiful in its artistry, ensuring an efficient signal path with minimal loss and no restriction in amplitude. In the Hand-Wired Series, tubes, transformers, speakers, chassis, and custom parts all join together in an ideal state to deliver the richest and most powerful sonic experience - the ultimate amp. Not bound by tradition, the VOX Hand-Wired Series also provides a variety of new functions that keep pace with the needs of todays artists. Offering a rich variety of tonal shadings and a broad model lineup, the enormous potential of the VOX Hand-Wired Series will reveal itself in any musical scenario.

Specs

• Output Power: 15 Watts RMS into 8/16 Ohms
• Tube Complement: Preamp: ECC83/12AX7 (x3), Power amp: EL84 (x2), Rectifier: EZ81
• Speakers: 12" Celestion G12M Green Back (x1); 16 Ohm
• Inputs: NORMAL Channel Jacks: HIGH (x1); LOW (x1) TOP BOOST Channel Jacks: HIGH (x1); LOW (x1) FOOT SWITCH Jack
• Outputs: External Speaker Jack, Extension Speaker Jack
• Dimensions (W x D x H): 610 x 260 x 550 mm / 24.02 x 10.24 x 21.65 inches
• Weight: 22.8 kg / 50.3 lbs.
• Included items: Power cable, VFS1 footswitch, Dust cover

The addition of a second speaker enhances the classic VOX tone. Introducing the new AC15C2 "TWIN" The Custom Series AC15 amplifier is now available with two 12"Celestion G12M Greenback Speakers. This new AC15C2 “TWIN" (as it was affectionately referred to in the 60s) enhances the full, “chimey" sound of the traditional AC15C1; and also features the larger spring reverb tank found in the AC30C2. Based on the classic AC15, the AC15C2 “TWIN" is part of the VOX Custom Series line. These amps have been updated to include dual channel sound, tremolo circuitry, and footswitching capabilities. True to its past, the AC15C2 “TWIN" relies on 3 x 12AX7 dual triode vacuum tubes in the pre-amp stage, and 2 x EL84 pentode tubes in the power stage. Two channels are provided on the AC15C2: Normal and Top Boost. Each channel is equipped with its own Volume control, and the Top Boost channel offers highly interactive Treble and Bass tone controls. This powerful channel pairing provides an abundance of tone-crafting control. Both channels rely on the Tone Cut and Volume controls in the Master section. The Tone Cut control operates in the power stage rather than the preamp stage, allowing an additional degree of tone-shaping. The Master Volume control works in conjunction with the individual volumes of each channel to create just the right degree of gain-staging. By balancing the individual and Master volumes, the AC15C2 “TWIN" can deliver the coveted clean VOX "chimey" sound or a powerful overdriven tone - and everything in between. The AC15C2 “TWIN" provides the VOX Classic Tremolo effect, with adjustable controls for both the speed and the depth. A warm Spring Reverb is also included on all Custom Series amps, adding spaciousness to the sound. Thanks to the AC15C2 “TWIN"s two-speaker cabinet size, the AC15C2 “TWIN" uses the larger reverb tank found on the Custom Series AC30 models The optional VFS2 footswitch provides a hands-free method for turning the Reverb and Tremolo effects on and off while performing.

• VOX AC15C2 Twin Custom Specifications
• Output Power: 15 Watts RMS into 16 Ohms
• Speaker: 2 x 12" 8 ohm Celestion G12M Greenback
• Inputs: Normal input jack, Top Boost input jack, Footswitch jack
• Outputs: External loudspeaker jack, Extension loudspeaker jack
• Options: VFS2A Footswitch
• Dimensions (W x D x H): 702 x 265 x 556 mm / 27.64 x 10.43 x 21.89 inches
• Weight: 30.2 kg / 66.58 lbs.

The AC15C1X with a Celestion Alnico Blue Speaker Alnico Blue speakers made by the Celestion Company are an especially great match for the AC30. They have reigned as the standard combination ever since the VOX brand was established. Now, a model featuring these Alnico Blue speakers is available in the 15W series. Its called the AC15C1X. Experience the rich VOX sound thats overflowing with vintage tone.

An Evolution in Tone

VOX Custom Series amps offer two channels: Normal and Top-Boost. Each channel is equipped with its own Volume control, and the Top Boost channel offers highly interactive Treble and Bass tone controls. This powerful channel pairing provides an abundance of tone-crafting control, letting you dial in a classic sound that is all your own. Both channels rely on the Tone Cut and Volume controls in the Master section. The Tone Cut control operates in the power stage rather than the preamp stage, allowing an additional degree of tone-shaping. The Master Volume control works in conjunction with the individual volumes of each channel to create just the right degree of gain-staging. By balancing the individual and Master volumes, the Custom Series can deliver everything from a clean VOX "chimey" sound to a powerful overdriven tone.

Sound in Motion

You can sweeten the sound of your Custom Series amplifier using the VOX Classic Tremolo effect. Both the speed and the depth are adjustable, allowing you to generate just the sound you want. A warm Spring Reverb is also included on all Custom Series amps, adding spaciousness to the sound. All Custom Series amps can use the VOX VFS2 footswitch, allowing you to turn the Reverb and Tremolo effects on and off as you continue to play.

Power Sharing

The AC15C1 combo makes use of 3 x 12AX7 preamp tubes and uses pair of EL84 tubes to drive a single 12" Celestion speaker. You can choose either the AC15C1 with a Celestion G12M Greenback speaker or the AC15C1X loaded with a Celestion Alinco Blue speaker. All models in the Custom Series offer a switchable 8/16 ohm output jack for powering an external speaker cabinet when you need to speak with a little more authority; using this jack will mute the internal speakers. Additionally, a 2nd extension speaker jack allows you to run an extra 16 ohm cabinet along with the internal speakers for a fuller sound.

Specs

• Output Power: 15 Watts RMS into 16 Ohms
• Speaker: 1 x 12"" 16 ohm Celestion G12M Greenback (AC15C1) or Alnico Blue Speaker (AC15C1X)
• Inputs: Normal input jack, Top Boost input jack, Footswitch jack
• Outputs: External loudspeaker jack, Extension loudspeaker jack
• Dimensions (W x D x H): 602 x 265 x 456 mm / 23.70 x 10.43 x 17.95 inches
• Weight: 22 kg / 48.50 lbs.
• Options: VFS2A Footswitch

The Vox AC15C1 is the version of the AC15 with a single 12" Celestion G12M Greenback speaker.

An Evolution in Tone

VOX Custom Series amps offer two channels: Normal and Top-Boost. Each channel is equipped with its own Volume control, and the Top Boost channel offers highly interactive Treble and Bass tone controls. This powerful channel pairing provides an abundance of tone-crafting control, letting you dial in a classic sound that is all your own. Both channels rely on the Tone Cut and Volume controls in the Master section. The Tone Cut control operates in the power stage rather than the preamp stage, allowing an additional degree of tone-shaping. The Master Volume control works in conjunction with the individual volumes of each channel to create just the right degree of gain-staging. By balancing the individual and Master volumes, the Custom Series can deliver everything from a clean VOX "chimey" sound to a powerful overdriven tone.

Sound in Motion

You can sweeten the sound of your Custom Series amplifier using the VOX Classic Tremolo effect. Both the speed and the depth are adjustable, allowing you to generate just the sound you want. A warm Spring Reverb is also included on all Custom Series amps, adding spaciousness to the sound. All Custom Series amps can use the VOX VFS2 footswitch, allowing you to turn the Reverb and Tremolo effects on and off as you continue to play.

Power Sharing

The AC15C1 combo makes use of 3 x 12AX7 preamp tubes and uses pair of EL84 tubes to drive a single 12" Celestion Alnico Blue Speaker. All models in the Custom Series offer a switchable 8/16 ohm output jack for powering an external speaker cabinet when you need to speak with a little more authority; using this jack will mute the internal speakers. Additionally, a 2nd extension speaker jack allows you to run an extra 16 ohm cabinet along with the internal speakers for a fuller sound.

Celestion Alnico Blue Speaker

Alnico Blue speakers made by the Celestion Company are an especially great match for the AC30. They have reigned as the standard combination ever since the VOX brand was established. Now, a model featuring these Alnico Blue speakers is available in the 15W series. Its called the AC15C1X. Experience the rich VOX sound thats overflowing with vintage tone.

Features:

• Normal and Top-Boost Channels
• Each channel is equipped with its own Volume control
• Tone Cut and Master Volume
• VOX Classic Tremolo effect
• 3 x 12AX7 preamp tubes
• Pair of EL84 tubes
• Single 12" Celestion Alnico Blue Speaker

The AC10 was one of the first amplifiers to bear the VOX name and has long been adored for his ability to achieve rich, articulate tube tone at very manageable volumes. For this reason, the AC10 has become a highly coveted piece of VOX history since its discontinuation in 1965. Now in 2015, VOX is proud to introduce the AC10C1, a modern take on this classic design. More portable than the AC15 and more powerful than the AC4, the AC10C1 features the classic Top Boost tone circuit that provides an array of classic and modern tones. Now equipped with reverb and a master volume, the AC10C1 is the perfect companion for the home, studio or stage.

Specs

• Output Power: 10W RMS
• Controls: GAIN, BASS, TREBLE, REVERB, VOLUME
• Tube Compliment: 2 × 12AX7, 2 × EL84
• Speaker: 1 × 10-inch Celestion VX10
• Input jack: INPUT jack
• Output jacks: EXTERNAL SPEAKER jack
• Dimensions (W x D x H): 520 x 210 x 410 mm/20.47"x8.27"x16.14"
• Weight: ​12.3kg/27.12 lbs

The AC10 was one of the first amplifiers to bear the VOX name and has long been adored for his ability to achieve rich, articulate tube tone at very manageable volumes. For this reason, the AC10 has become a highly coveted piece of VOX history since its discontinuation in 1965. Now in 2015, VOX is proud to introduce the AC10C1, a modern take on this classic design. More portable than the AC15 and more powerful than the AC4, the AC10C1 features the classic Top Boost tone circuit that provides an array of classic and modern tones. Now equipped with reverb and a master volume, the AC10C1 is the perfect companion for the home, studio or stage.

Specs

• Output Power: 10W RMS
• Controls: GAIN, BASS, TREBLE, REVERB, VOLUME
• Tube Compliment: 2 × 12AX7, 2 × EL84
• Speaker: 1 × 10-inch Celestion G10-45 Creamback
• Input jack: INPUT jack
• Output jacks: EXTERNAL SPEAKER jack
• Dimensions (W x D x H): 520 x 210 x 410 mm/20.47"x8.27"x16.14"
• Weight: ​12.3kg/27.12 lbs

The Sonzera 50 is a 50-watt combo amplifier with two independently controlled, footswitchable channels designed for maximum versatility and in the spirit of vintage amps that allowed you to control your tone instead of the amp being in control.

The clean channel delivers full, 3D tones reminiscent of American 1960s and 70s amplifiers. The lead channel is related to the clean channel circuit-wise, so that it can be set up to act as a boosted clean channel or manipulated to make the channels sound like two completely different amps (the lead channel can be set from slight to very heavy distortion by simply using the volume and master controls). The bright switch on the lead channel has been carefully tailored to deliver familiar high-end snap and is particularly effective on the low strings, neck pickup settings, and with singlecoils, while the low-end response of the lead channel is full, tight, and clear.

Both channels on the Sonzera are designed to maximize note clarity and definition. The global presence control and the tone stack allow players to dial in a variety of tones from bell-like chime to warmer, thicker tones. The Sonzera 50 Combo also features independent reverb control that is designed to enhance notes without clouding them. The reverb can be turned on and off via the footswitch. The addition of a built-in effects loop allows players to use all their time-based effects with ease without negatively impacting the overall tone of the amp.

In addition to its versatile tone, the Sonzera 20 Combo is also designed for reliability and serviceability. The power tube sockets are mounted directly to the steel chassis, and no push-on connections are used all wires are soldered.

With robust construction, a wide range of tones, and steadfast controllability, the Sonzera 50 Combo is a solid gig- and studio- worthy amplifer.

Features:

• Watts: 50 (nominal)
• Channels: Two
• Power Tubes: 2 x EL34BHT
• Preamp Tubes: 1 x JJ ECC83S, 3 x 12AX7AC5 HG
• Output Jack Configuration: Two 4 and 8 Ohm parallel jacks, one 16 Ohm jack (5 total jacks)
• Fixed/Adjustable or Cathode Bias: Fixed (adjustable)
• Dimensions (Unboxed): 24" W x 10.5" D x 19" H
• Weight: 56.5 lbs.
• Colours: Stealth with Black and Cream grill cloth

Inspired by arguably one of the most successful guitar amps in Marshalls history, the JCM800 2203. The Studio Classic delivers the full spectrum of JCM800 2203 tone from rich and full cleans to heavier driven aggressive sounds in a portable format. It has a master volume, versatile EQ settings including presence control, a preamp volume control, an added effects loop and DI out.

Features:

• Valves: 2 x ECC83, 1 x ECC83 (phase splitter) and 2x EL34
• Single channel with high and low sensitivity inputs
• Preamp and master volume controls
• 20W and 5W power settings
• Equalisation: Treble, middle, bass and presence
• Speaker: 1x10" (Celestion V-type)
• Speaker Outputs: 5 x 1/4" jack sockets (16ohm load / 8ohm load / 4ohm load)
• DI output

Inspired by arguably one of the most successful guitar amps in Marshalls history, the JCM800 2203. The Studio Classic delivers the full spectrum of JCM800 2203 tone from rich and full cleans to heavier driven aggressive sounds in a portable format. It has a master volume, versatile EQ settings including presence control, a preamp volume control, an added effects loop and DI out.

Features:

• Valves: 2 x ECC83, 1 x ECC83 (phase splitter) and 2x EL34
• Single channel with high and low sensitivity inputs
• Preamp and master volume controls
• 20W and 5W power settings
• Equalisation: Treble, middle, bass and presence
• Speaker Outputs: 5 x 1/4" jack sockets (16ohm load / 8ohm load / 4ohm load)
• DI output

Based on an amp that inspired generations of iconic guitarists, the 1959SLP. Marshall Studio Vintage amps deliver the unmistakeable tone shaping and harmonics that are expected from the 1959SLP in a portable format. You can play anything from saturated blues tones to biting leads for classic rock. Studio Vintage amps provide four separate inputs for you to blend your sound, distinctive EQ settings including presence control, a DI output and power reduction.

Features:

• Valves: 2 x ECC83, 1 x ECC83 (phase splitter) and 2x EL34
• Single channel with 4 separate inputs
• High and low sensitivity loudness controls
• 20W and 5W power settings
• Equalisation: Treble, middle, bass and presence
• Speaker Outputs: 5 x 1/4" jack sockets (16ohm load / 8ohm load / 4ohm load)
• DI output

The JCM25/50 Silver Jubilee Series was produced in 1987 to celebrate 25 years of Marshall Amplification and 50 years of Jim Marshall being in the music business. Inspired by this acclaimed series, the 2525C and the 2525H combine Silver Jubilee preamp features and styling in a lower power design.

Features:

• Valves: 2 x ECC83, 1 x ECC83 (phase splitter) and 2x EL34
• 2 channels (split)
• 20W and 5W power settings
• Equalisation: Treble, middle, bass and presence
• Speaker Outputs: 5 x 1/4" jack sockets (16ohm load / 8ohm load / 4ohm load)
• DI output

1 Watt of gut-wrenching power featuring a battery and a headphone jack that doubles as a preamp out, so you can rock while you roll.

This MS-2 black, mini half stack has bags of serious tone and is anything but a toy. It has even been used in professional recording studios; placed in a shoe box with a hole cut for a microphone. We kid you not.

1 Watt of gut-wrenching power featuring a battery and a headphone jack that doubles as a preamp out, so you can rock while you roll.

This MS-2 black, mini half stack has bags of serious tone and is anything but a toy. It has even been used in professional recording studios; placed in a shoe box with a hole cut for a microphone. We kid you not.

The British-built, all-valve 50 Watt JVM205H offers a more straightforward two channel preamp, Clean/Crunch and Overdrive, than the JVM410H four channels, for guitarists who prefer a more stripped down, ‘fewer frills approach. The two independent channels both have three modes. Each mode reconfigures the gain structure of each channel, making six modes in total, which can take you from Plexi/JTM45 cleans through JCM800 to modern high gain tones.

The JVM205H is equipped with the same groundbreaking technology as its big brother, the JVM410H, featuring two studio quality Reverbs (one per channel), with individual channel EQ, two Master Volumes, and a memory that will recall your Reverb, FX loop and Master settings.

The JVM205H uses Stompware switching technology and comes supplied with a fully programmable, four-button footswitch which connects to the amp using a standard guitar lead so youre not restricted by stage size and if your cable fails, it very easy to replace.

Specs

• Model: Jvm205h
• Technology: Valve
• Channels: 2
• Master Volume: Yes X 2
• Wattage: 50w
• Inputs: 1 (+midi)
• Controls: Volume, Gain, Bass, Middle, Treble X 2, Reverb X 2, Channel Select X 2, Presence, Resonance, Fx Loop, Footswitch/programme
• Pre Amp Valves: 4 X Ecc83
• Power Amp Valves: 1 X Ecc83, 2 X El34
• Footswitch: Pedl-91006 Included (4 Way Footcontroller)
• Cables: Power/speaker
• Weight (Kg): 17.5

Expression begins with the all valve Origin series. It delivers two inbuilt voices, a new tilt control, Powerstem our new power reduction technology and forms the perfect marriage with FX pedals. The classically styled single channel amps generate rich and harmonic tones that are ideal for players to explore new possibilities and craft their sound. There is a 2-way footswitch available with all models so you can control the gain boost and turn the FX loop on and off. The series has something for those playing in the bedroom, at rehearsal or on the stage.

Innovate and craft your sound using this 50W combo. A Celestion Midnight 60 12" type speaker provides a classic all-valve, rich and harmonic Marshall tone. This amp has classic styling and contains contemporary features. A power reduction feature, Powerstem, perfectly matches your tone whether performing on stage or practicing in the studio. With a 2-way footswitch available you can control the gain boost and turn the FX loop on and off.
