Fender Santa Ana Overdrive V2 Pedal
0234533050
- Low stock - 1 item left
- Backordered, shipping soon

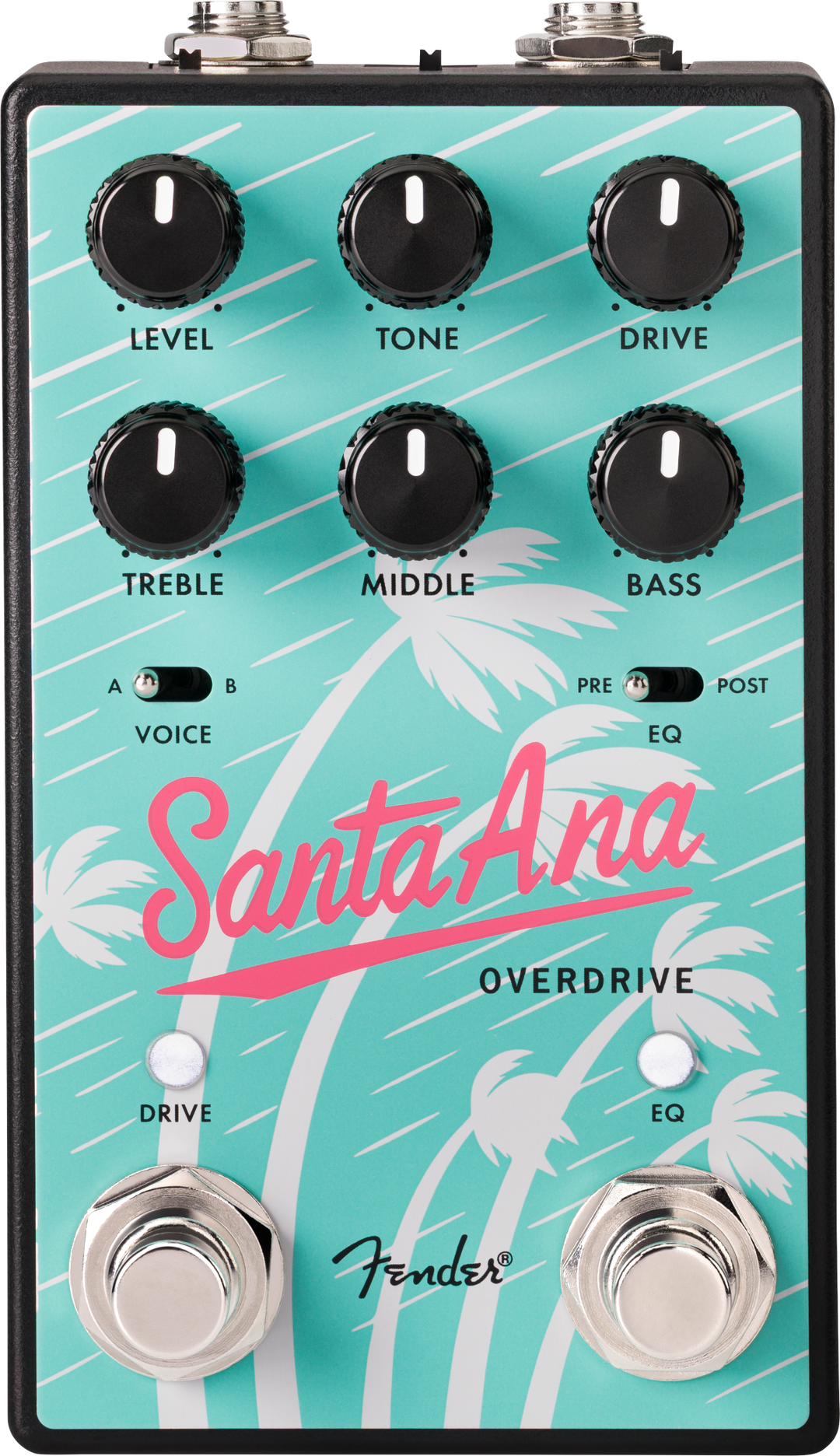

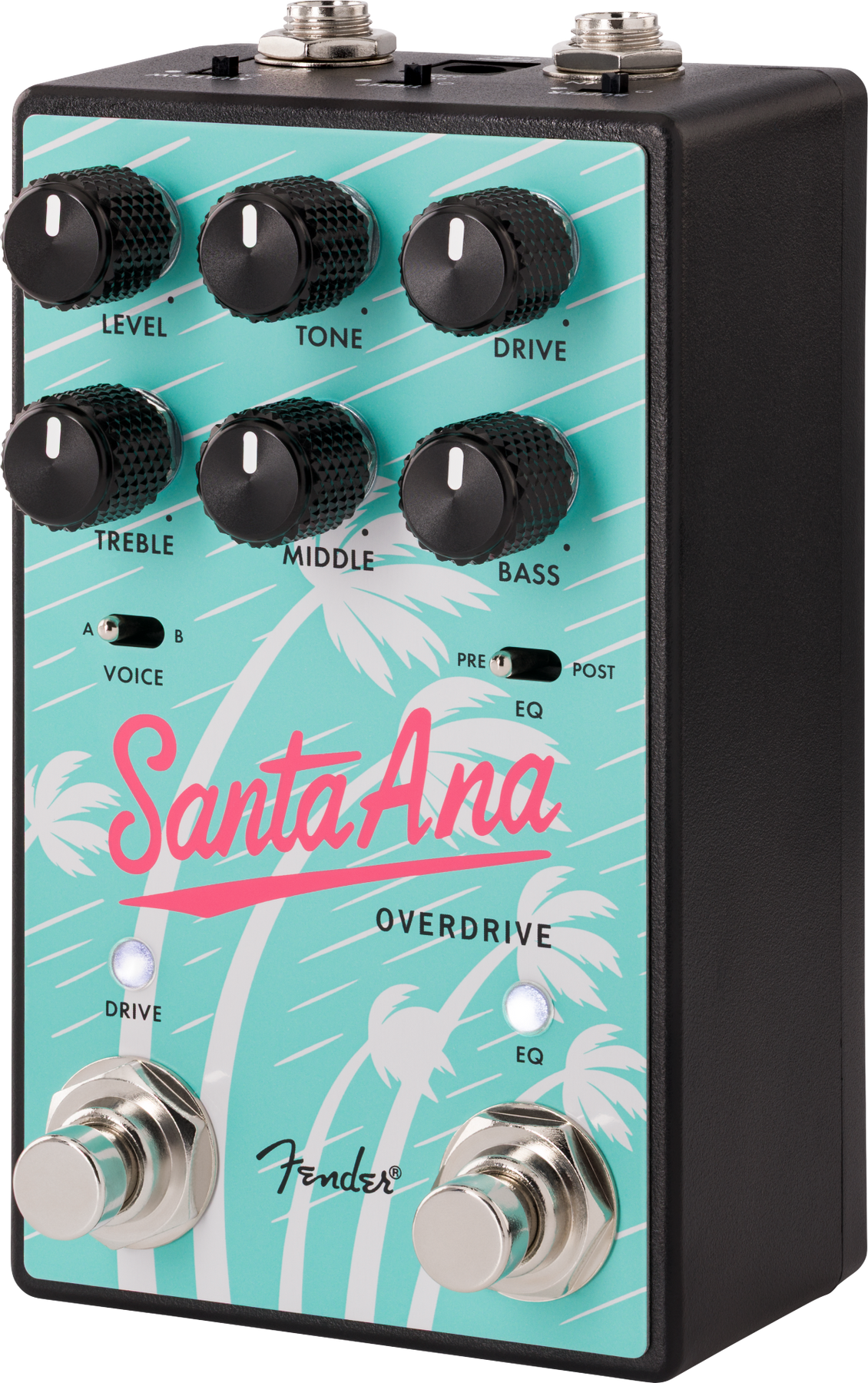

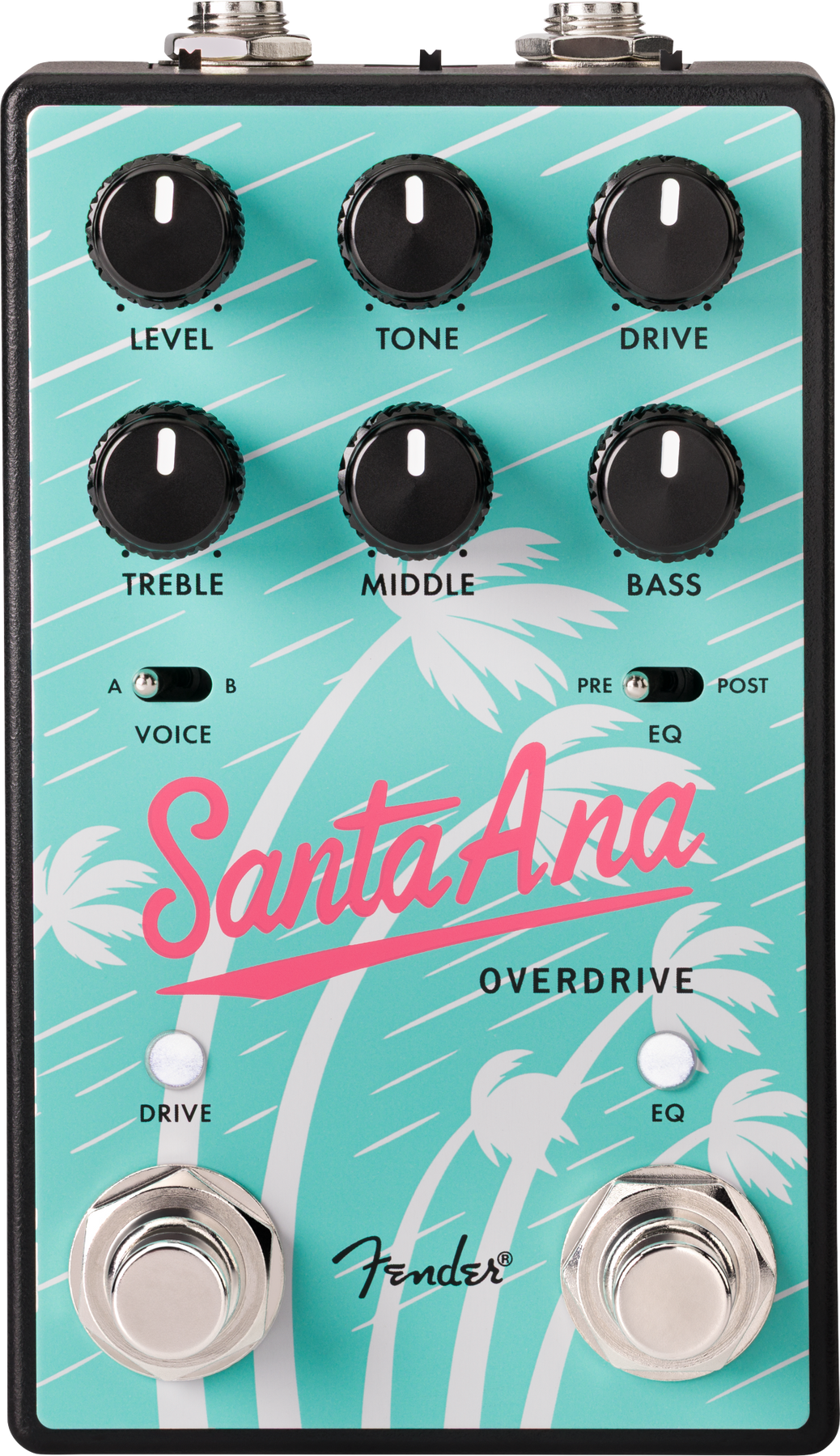

Fender Santa Ana V2 Overdrive Pedal – Dual-Voice JFET Class-A Overdrive with 3-Band EQ
The Santa Ana V2 is a JFET-based class-A overdrive running at 18V internally—delivering the touch sensitivity and high-headroom drive that comes from pushing a Fender tube amp hard. With dual-voice circuitry and an independently switchable 3-band EQ, this pedal gives you the versatility of a complete overdrive and tone-shaping system in a compact format.
Dual-Voice Drive Circuit
Two distinct overdrive voices give you complete tonal range. Voice A delivers natural-sounding, tight overdrive perfect for precise articulation and focus. Voice B provides smooth, thick lead tones for expressive, singing sustain. Drive and Tone controls let you dial the exact amount of gain and treble presence—whether you're looking for subtle warmth or aggressive push.

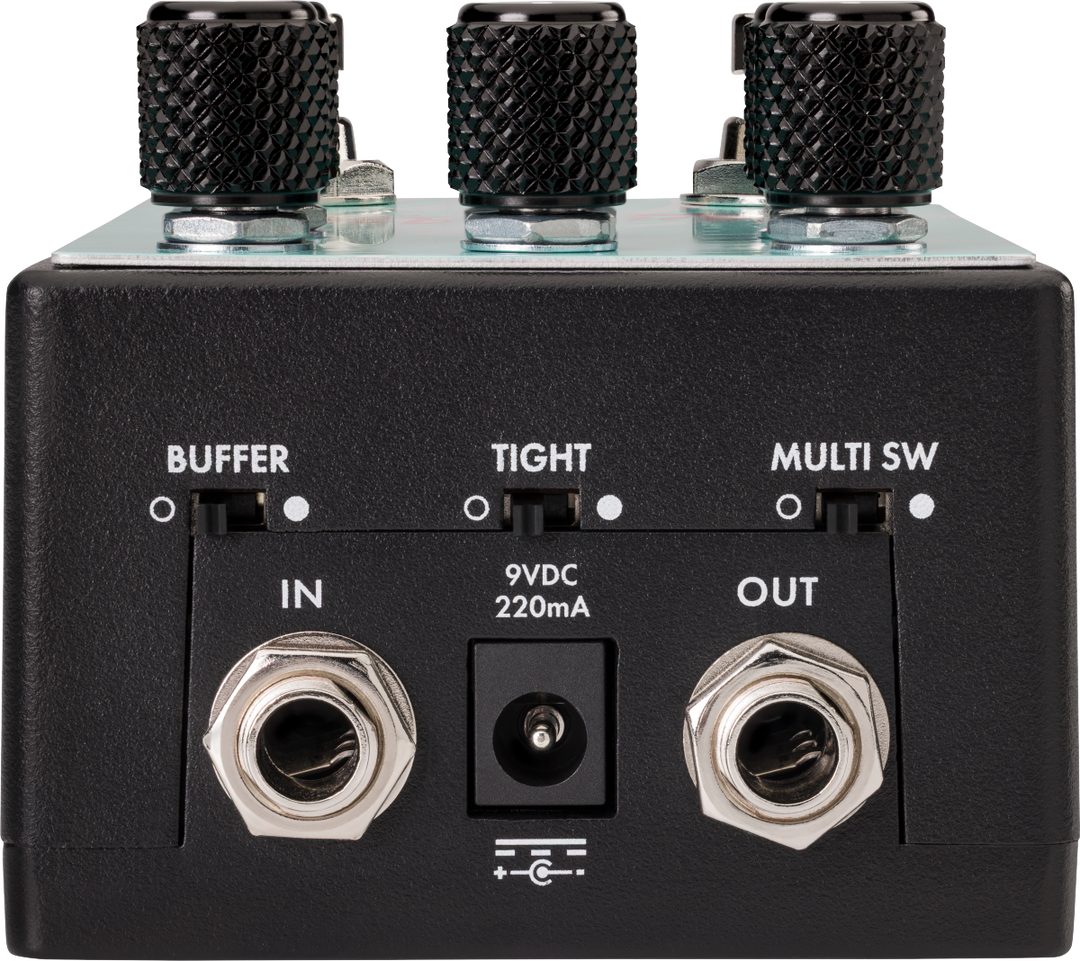

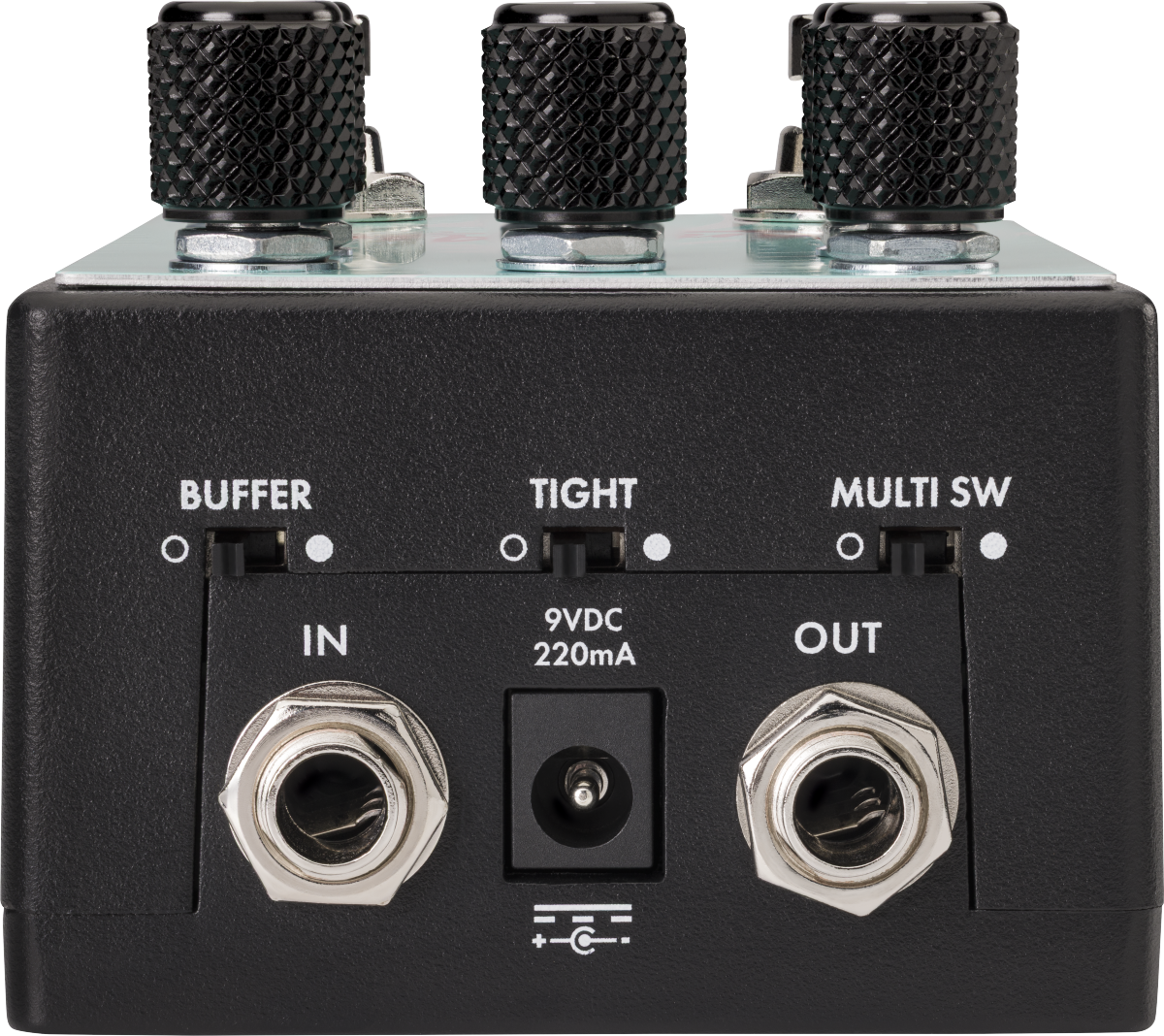

Rear-Mounted Tight Switch
Pull back some pre-drive bass frequencies for even more focused, punchy drive tone. Ideal for rhythm work or when you need clarity cutting through a dense mix.
Independent 3-Band EQ with Pre/Post Placement
This is Santa Ana V2's secret weapon. Active Bass, Middle, and Treble controls offer wide-range adjustment with centre-detent flat response. But the real flexibility comes from the EQ Placement switch:
- Pre-Drive EQ: Shape which frequencies get clipped most by the drive circuit. Use this to flavour the drive's response and dial in how the gain character develops.
- Post-Drive EQ: Let your guitar hit the drive head-on, then sculpt the resulting gain tones for dramatic EQ shaping and maximum flexibility.
Experiment with both placements to find your signature tone.
Professional Features
- Footswitchable true bypass and buffered bypass modes
- Multiswitch enables latching (tap) or momentary (press-and-hold) activation
- Top-mounted jacks and rugged aluminium enclosure
- Powered by 9V DC centre-negative adaptor (not included)
Specifications:
- Colour: Sea Foam Green
- Dimensions: 6.35 × 7.62 × 12.70 cm
- Weight: 0.30 kg
- Power: 220mA @ 9VDC
- Input Impedance: 1M Ohm
- Output Impedance: 470 Ohm
- Internal Voltage: 18V
Perfect For:
- Players seeking tube-amp-like responsiveness
- Session and touring musicians needing adaptable tones
- Blues and rock guitarists
- Those wanting professional-grade EQ shaping in overdrive
